Dendrite

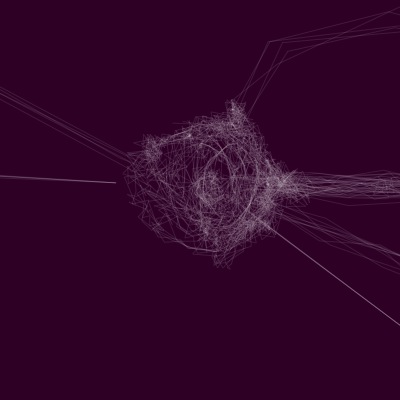

Yesterday Frederik wrote this inspiring interactive script that draws living lines. You can press the mouse and draw lines, and then they come alive like organic, pulsating dendrites.

You can learn an interesting trick or two about interaction, sine waves and Bezier paths by looking at the source code.

Play movie

size(400, 400)
speed(100)
from random import seed
from math import sin

lines = []
down = False

def append_line():
    global down
    if mousedown:
        if len(lines) > 0 and lines[-1] == (MOUSEX, MOUSEY):
            return
        if down:
            lines.append((LINETO, MOUSEX, MOUSEY, FRAME))
        else:
            down = True
            lines.append((MOVETO, MOUSEX, MOUSEY, FRAME))
    else:
        down = False


def draw_line():
    if len(lines) == 0: return
    nofill()
    stroke(1,1,1,0.5)
    strokewidth(0.25)
    p = BezierPath()
    for cmd, x, y,t in lines:
        if cmd == MOVETO:
            p.moveto(x, y)
        else:
            p.lineto(x, y)
    p.inheritFromContext()
    p.draw()

def draw_ch_line():
    for i in range(5):
        seed(i)
        if len(lines) == 0: return
        nofill()
        stroke(1,1,1,1)
        strokewidth(0.1)
        p = BezierPath()
        for cmd, x, y, t in lines:
            d = sin((FRAME - t) / 10.0)*15.0
            x += random(-d, d)
            y += random(-d, d)
            if cmd == MOVETO:
                p.moveto(x, y)
            else:
                p.lineto(x, y)
        p.inheritFromContext()
        p.draw()

def setup():
    pass

def draw():
    background(0.18,0.0,0.15)
    append_line()
    draw_ch_line()

Created by Frederik De Bleser
