Circle Packing code

Posted by Giorgio O. on Aug 07, 2008



dear all,

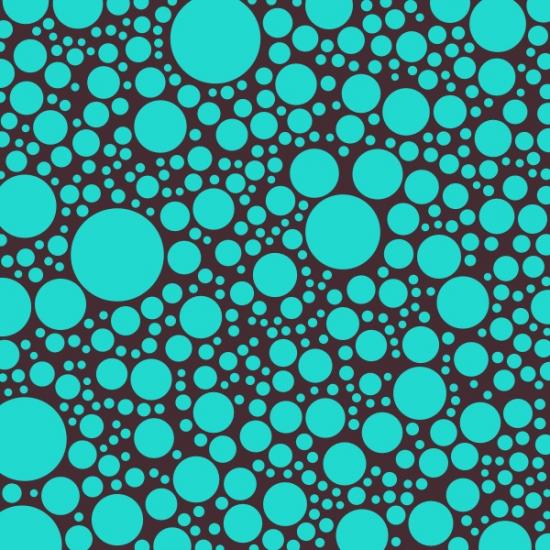

few months ago I promised Tom to publish the algorithm for circle packing that we used to produce this work: http://www.flickr.com/photos/todotoit/2126111606/

that particolar piece of code was 100% crap, now I finally had the time to polish it a little bit since we are going to use it for some new projects.
The code could still be optimized - there's too much brute force involved - but it works pretty decently if you are not in an hurry

"""
Circle Packing example for Nodebox - nodebox.net

This program is distributed under the GNU General Public License version 2

Copyright: TODO, interaction & media design - www.todo.to.it

"""


size(600, 600)
speed(30)

from math import sqrt

def setup():

    global h, w, max_size, max_nodes, min_gap, nodes
    h = HEIGHT
    w = WIDTH
    max_nodes = 400
    max_size = 200
    min_gap = 4.0
    nodes = NodeManager() #initialize an empty nodes container
    nodes.add(x=h/2, y=w/2, r=1) #add the first node (in the center of the canvas)



def draw():

    background(0.27, 0.17, 0.197)
    # add a new random node to nodes.list
    nodes.add(random(w), random(h), r=4)

    # brute force collision test on every node/circle
    for i in range(nodes.population-1):
        for j in range(i+1, nodes.population):
            if fast_circle_collision(nodes.list[i].x, nodes.list[i].y,
                                nodes.list[j].x, nodes.list[j].y,
                                nodes.list[i].radius, nodes.list[j].radius + min_gap) == True:
            	nodes.list[i].alive = False
            	nodes.list[j].alive = False

    # if the randomly placed new node is not alive, it means that it's overlapping, so we remove it
    if nodes.list[nodes.population-1].alive == False:
        nodes.pop_last()
    else:
        print "Num. nodes: ", nodes.population

    nodes.update()
    nodes.display()


class Node():

    def __init__(self, x, y, r):
        self.x = x
        self.y = y
        self.radius = r
        self.alive = True
        self.growth = random(0.1, 0.5)

    def update(self):
        if self.alive == True:
            self.radius += self.growth
            if self.radius >= max_size:
            		self.alive = False

    def display(self):
        if self.alive == True:
            c =  (0.96, 1.0, 0.71)
        else:
            c = (0.13, 0.85, 0.81)

        draw_node(self.x, self.y, self.radius, c)




class NodeManager:

	def __init__(self):
		self.population = 0
		self.list = []

   	def add(self, x, y, r):
		self.list.append(Node(x, y, r))
		self.population += 1

	def update(self):
		for i in range(self.population):
			self.list[i].update()

	def display(self):
		for i in range(self.population):
			self.list[i].display()

	def pop_last(self):
		self.list.pop()
		self.population -= 1



def draw_node(x, y, r, c):
    nostroke()
    fill(c)
    d = r*2
    oval(x-r, y-r, d, d)


def distance(x0, y0, x1, y1):
    return sqrt( (x1-x0)**2 + (y1-y0)**2)

def fast_distance(x0, y0, x1, y1):
    # without square root
    return (x1-x0)**2 + (y1-y0)**2

def circle_collision(x1, y1, x2, y2, radius1, radius2):
    if (distance(x1, y1, x2, y2,) > radius1+radius2):
        return False
    else:
        return True

def fast_circle_collision(x1, y1, x2, y2, radius1, radius2):
    if (fast_distance(x1, y1, x2, y2,) > (radius1+radius2)**2):
        return False
    else:
        return True



Posted by Tom De Smedt on Aug 07, 2008

You solved circle packing! Nice work!
The method of growing circles until they run out of room is very elegant.

Here's a quick and dirty test using the same method and path1.intersects(path2) for compound paths. To make it really work, the overlap check would need to rotate the shapes and then see if there is still some room left if a shape is rotated. But that sounds like a lot of work.

size(500, 500)

class Star:
    def __init__(self):
        self.x = random(WIDTH)
        self.y = random(HEIGHT)
        self.angle = random(360)
        self.radius = 1
        self.points = random(4, 10)

stars = [Star() for i in range(10)]

speed(10)
def draw():

    paths = []

    global stars
    for s in stars:
        path = star(s.x, s.y, s.points, s.radius, s.radius*2, draw=False)
        path.rotate(s.angle)
        path = path.transform.transformBezierPath(path)
        drawpath(path)
        paths.append(path)

    for path1 in paths:
        has_room = True
        for path2 in paths:
            if path1 != path2:
                if path1.intersects(path2):
                    has_room = False
                    break

        if has_room:
            i = paths.index(path1)
            stars[i].radius += 1



Posted by Giorgio O. on Aug 07, 2008

cool, I'll check it out.
btw.. the idea of growing the circles came from Fabio :-)



Posted by Tom De Smedt on Aug 09, 2008

Here's another interesting circle packing algorithm, ported from Sean McCullough's code for Processing. It's based on spring physics (e.g. like the Graph library): circles are attracted to the center of the canvas, and repulse other intersecting circles.

You can drag circles around with the mouse.
Play movie

# Ported from Sean McCullough's Processing code:
# http://www.cricketschirping.com/processing/CirclePacking1/
# See also: http://en.wiki.mcneel.com/default.aspx/McNeel/2DCirclePacking

from nodebox.geo import distance

class circle:

    def __init__(self, x, y, radius, fill=None):
        self.x = x
        self.y = y
        self.radius = radius
        self.fill = fill

    def _offset(self):
        return distance(self.x, self.y, WIDTH/2, HEIGHT/2)
    offset = property(_offset)

    def contains(self, x, y):
        return distance(self.x, self.y, x, y) <= self.radius

    def intersects(self, other):
        d = distance(self.x, self.y, other.x, other.y)
        return d < self.radius + other.radius

    def draw(self):
        fill(self.fill)
        stroke(0.3)
        strokewidth(1)
        oval(
            self.x-self.radius,
            self.y-self.radius,
            self.radius*2,
            self.radius*2
        )

def pack(circles, damping=0.1, padding=2, exclude=[]):

    circles.sort(lambda a, b: a.offset < b.offset)

    # Repulsive force: move away from intersecting circles.
    for i in range(len(circles)):
        circle1 = circles[i]
        for j in range(i+1, len(circles)):
            circle2 = circles[j]
            d = distance(circle1.x, circle1.y, circle2.x, circle2.y)
            r = circle1.radius + circle2.radius + padding
            if d**2 < r**2 - 0.01:
                dx = circle2.x - circle1.x
                dy = circle2.y - circle1.y
                vx = (dx / d) * (r-d) * 0.5
                vy = (dy / d) * (r-d) * 0.5
                if circle1 not in exclude:
                    circle1.x -= vx
                    circle1.y -= vy
                if circle2 not in exclude:
                    circle2.x += vx
                    circle2.y += vy

    # Attractive force: all circles move to center.
    for circle in circles:
        if circle not in exclude:
            vx = (circle.x - WIDTH/2) * damping
            vy = (circle.y - HEIGHT/2) * damping
            circle.x -= vx
            circle.y -= vy

#import psyco
#psyco.bind(physics)

n = 30
circles = []
for i in range(n):
    c = circle(
        random(WIDTH),
        random(HEIGHT),
        radius=random(i)+10
    )
    c.fill = color(c.radius*0.02, 0.2+c.radius*0.03, 0, 0.8)
    circles.append(c)

size(500, 500)
speed(50)
dragged = None
def draw():

    # Drag objects with the mouse.
    global dragged
    if dragged:
        dragged.x = MOUSEX
        dragged.y = MOUSEY
    if not mousedown:
        dragged = None
    elif not dragged:
        for circle in circles:
            if circle.contains(MOUSEX, MOUSEY):
                dragged = circle

    for circle in circles:
        circle.draw()

    # More iterations = smoother physics but slower animation.
    iterations = 15
    for i in range(1, iterations):
        pack(circles, damping=0.1/i, exclude=[dragged])



Posted by lastfuture on Mar 30, 2009

Excellent idea! I have a few suggestions to make this original code even faster, but I'm not good enough in Python to implement it, so I'll explain it hoping that somebody will implement my ideas.

First of all you wouldn't have to check collisions against all circles. it would be enough to check only with all circles whose center is in a square that is maxradius*4+mingap*2 with the active circle in the middle. that way you're only checking a subset of collisions but still consider all circles in the vicinity. should speed things up cpu wise.
also it would be a lot faster, if instead of only growing from smallest to largest, you would do the following: try it at smallest to see if it is colliding immediately; if so, discard it. then right away try largest to see if it has room to grow fully. if it does you're already done. if it is colliding at largest, try half-way between smallest and largest. if it's not colliding then, only grow larger. if it is colliding only grow smaller. you saved a lot of time.

Please, I'd be very glad if anybody good at python could help optimize the code with my suggestions. I tried it myself, but failed.

Kind regards
-- Peter



Posted by Mark M on Mar 31, 2009

Hey Tom, I just saw the video you uploaded, really cool.

I have done something similar to Georgio's example although with a different approach that isn't really algorithmic--basically it just does some of the math. It's also not really circle packing since it make no real attempt to fill the space.

The approach is to make a triangular tessellation (I'm using Delny http://pypi.python.org/pypi/Delny/0.2.0 to make a DeLaunay tessellation because it's an easy way to start with random data, but any will do). Then you simply find the incircles of the triangles. The whole idea being that triangular tilings are easy to do than circle packing and it guarantees the circles won't intersect without having to test for collisions.

Examples:
http://www.flickr.com/photos/21966638@N00/3400508791/
http://www.flickr.com/photos/21966638@N00/3401315466/

Code:

import delaunay
# from http://pypi.python.org/pypi/Delny/0.2.0

from math import sqrt
size(800, 800)
background(.9, .9, .9)

def distance(p1, p2):
    '''p1 and p2 are (x, y) arrays'''
    return sqrt( pow(p1[0]-p2[0], 2) + pow(p1[1] - p2[1],2))

class triangle:
    def __init__(self, a, b, c):
        """a, b, c, are just the vertices as (x,y) pairs"""
        self.vertices = [a, b, c]
        self.lengths = []
        for i in range(3):
            self.lengths.append(distance(self.vertices[i], self.vertices[i-1]))

    def draw(self):
        beginpath(*self.vertices[0])
        lineto(*self.vertices[1])
        lineto(*self.vertices[2])
        endpath()

    def incenter(self):
        x = (self.lengths[0]*self.vertices[1][0] + self.lengths[1]*self.vertices[2][0]
             + self.lengths[2]*self.vertices[0][0])/sum(self.lengths)
        y = (self.lengths[0]*self.vertices[1][1] + self.lengths[1]*self.vertices[2][1]
             + self.lengths[2]*self.vertices[0][1])/sum(self.lengths)
        return (x,y)

    def incircleRadius(self):
        from operator import mul
        s = sum(self.lengths)/2.0
        return sqrt((reduce(mul, [s-x for x in self.lengths]))/s)

stroke(.8,.8, .9)
strokewidth(.1)
nofill()
points = []
n = 1800 # this is the number of vertices from which the triangles will be made
for i in range(n):
    x = random(50., WIDTH-50.0)
    y = random(50., HEIGHT-50.0)
    points.append((x, y))

triangulation = delaunay.Triangulation(points)
tri = triangulation.get_elements()

colormode(HSB)

for t in tri:
    fill(random(0, 1.0), .2, random(.2, .5), .5 )
    tri = triangle(*t)
    incenter = tri.incenter()
    radius = tri.incircleRadius()
    oval(incenter[0]-radius, incenter[1]-radius, 2*radius, 2*radius)



Posted by Reza on May 12, 2009

can these codes handle 10,000 discs too?
